PXS-10M1G-80-T-SFF * Active

High Speed Two Pole Transfer Switch

Buy Now
PXS-10M1G-80-T-SFF *
Product Feature

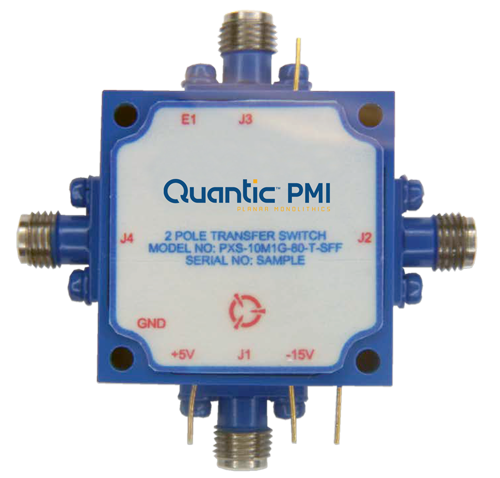

Quantic PMI Model PXS-10M1G-80-T-SFF is an absorptive, high speed, two pole transfer switch capable of switching within 100 ns maximum that has a frequency range of 0.01 to 1 GHz with 80 dB isolation. Housing size is 1.2" x 1.2" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: XFER / DPDT
Reflective / Absorptive: Absorptive
Frequency (GHz): 0.01 to 1
Frequency Min (GHz): 0.01
Frequency Max (GHz): 1
Insertion Loss (dB): 1.3 dB Max
Insertion Loss - Typ (dB): 1.3 dB Max
Isolation (dB): 80 dB Min
Isolation - Typ (dB): 80 dB Min
Switching Speed: 200 ns Typ,
250 ns Max
Input Power: 33 dBm (2 W) Max
VSWR In/Out: 1.5:1 Max
Impedance: 50 Ohm
Power Supply: +5 ± 0.5 VDC
-15 ± 3 VDC
Control Signal: Solder Pin, TTL Logic
Connectors: SMA Female
Size: 1.2" x 1.2" x 0.5"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
