PVVAN-3G3D4G-45-CD-SFF Preliminary

Voltage Variable Attenuator

PVVAN-3G3D4G-45-CD-SFF
Product Feature

Quantic PMI Model PVVAN-3G3D4G-45-CD-SFF is a Voltage Controlled Attenuator that operates over the frequency range 3 to 4 GHz, with 45 dB of attenuation using 0 to 10 V as control voltage. Package size is 3.1" x 2.3" x 0.8" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 3 to 3.4 GHz
Frequency Min (GHz): 3
Frequency Max (GHz): 3.4
Insertion Loss (dB): 1.8 dB Max
Attenuation (dB): 0 to 45 dB ± 5 dB Max
Control Type: Voltage
VSWR: 2 Max
Power Supply: Voltage: +15 V, -15 V
Current: 90 mA Max, 60 mA Max
Terminal: Solder Pin
In/Out Impedance: 50 Ohm
Max Input Power: 20 mW
Attenuation Deviation: ±1.6 dB Max (Over Temp)
±1.35 dB Max (Over Freq)
Response Time: 100 ns goal, 500 ns Max
Attenuation Control Voltage: 0 to +10 V
Control Characteristics: Monotonic Variation, 5 dB/V Max @ 6 V or Less Attenuation 25 dB Min @ 6 V
RF Connectors: SMA Female - removable

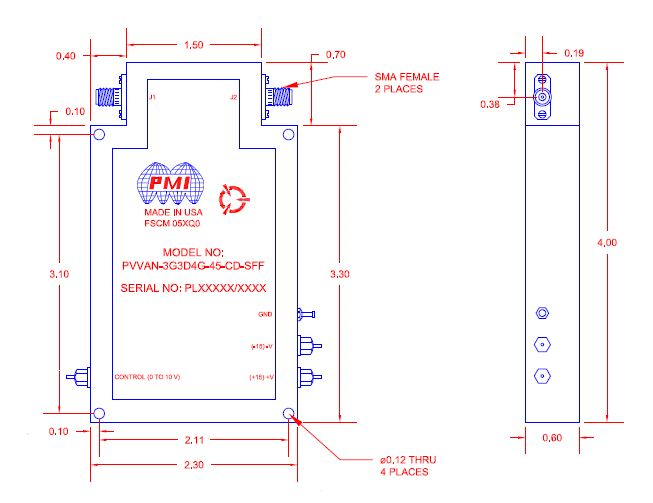

Size: 3.1" x 2.3" x 0.8"
Weight: 150 g Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40ºC to +70ºC
Non-Operating Temperature: -40ºC to +70ºC
Humidity: 95% RH Max @ +70ºC
Vibration: 16 Hz, 3 mm/3G
Height: 0 to 2, 134 m (0 to 7, 000 ft)
