PVVAN-26R5G40G-50-CD-1 Preliminary

PMI Model No. PVVAN-26R5G40G-50-CD-1 is an analog controlled, 50dB Pin Diode Attenuator operating over the frequency range of 26.5 to 40.0GHz.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 26.5 GHz
Frequency Max: 40 GHz
Insertion Loss: 10 dB
Attenuation: 50 dB
Control Type: Voltage
Frequency Range: 26.5 to 40.0 GHz
Attenuation Accuracy: ±2.0dB typ
VSWR: 2.5:1 typ
Finish: Painted Gray
RF Connectors: 2.92mm(F)
DC Connector: 15 Pin Micro-D-Female (Mating Connector Supplied)

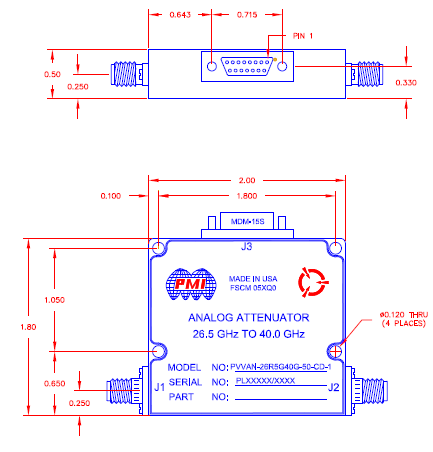

Housing: 2.0" x1.8" x 0.5"
Power Supply: ±12VDC or ±15VDC
Input Power: +24dBm CW Max
Input 1dB Compression: +10dBm typ
Environmental Ratings:
Operating Temperature: -40ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Salt Fog: MIL-STD-202F, method 107D Cond A
Fungus: MIL-STD-810C, Method 508.2
