PVVAN-2550-60-MP Preliminary

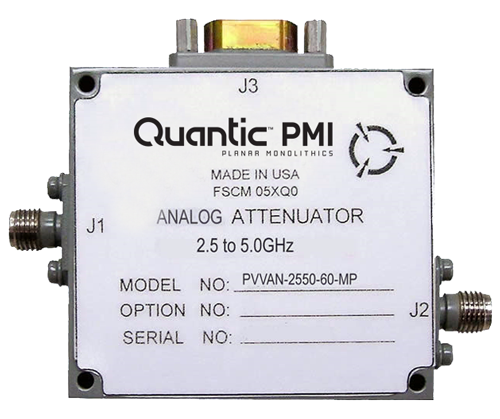

PMI Model PVVAN-2550-60-MP is an analog controlled 60dB PIN diode attenuator operating over the frequency range of 2.5 to 5.0GHz.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 2.5 GHz
Frequency Max: 5 GHz
Insertion Loss: 2.1 dB
Attenuation: 60 dB
Control Type: Voltage
Frequency Range: 2.5 GHz to 5.0 GHz
Attenuation Flatness: ±0.47dB @ 10dB Attenuation, ±0.87dB @ 20dB Attenuation, ±1.5dB @ 40dB Attenuation, ±1.6dB @ 60dB Attenuation
Attenuation Control: 10dB / Volt
Switching Speed: 500nsec Max.
VSWR: 2.0:1 Max.
RF Connectors: SMA Female
DC Connector: 15 Pin Micro-D Female
Housing: 2.00" x 1.80 x 0.50"
Power Supply: +12V @ 125mA Max. -12V @ 50mA Max.
Operating Input Power: +20dBm CW Max.
Survival Power: +30dBm CW Max.
Environmental Ratings:
Operating Temperature: -55ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
