| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 2 to 4 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 4 |
|---|
| Insertion Loss (dB): | 2 dB |
|---|
| Attenuation (dB): | 60 dB |
|---|
| Control Type: | Voltage |
|---|
| Attenuation Flatness (dB): | ±0.45 dB @ 10 dB,
±0.8 dB @ 20 dB,
±1.5 dB @ 40 dB,
±1.6 dB @ 60 dB |
|---|
| Attenuation Control: | 10 dB / V |
|---|
| Switching Speed: | 500 ns Max |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Power Supply: | +12 VDC @ 125 mA Max
-12 VDC @ 50 mA Max |
|---|
| Operating Input Power: | 20 dBm CW Max |
|---|
| Survival Power: | 30 dBm CW Max |
|---|
| RF Connectors: | SMA Female |
|---|
| DC Connector: | 15 Pin Micro-D Female |
|---|

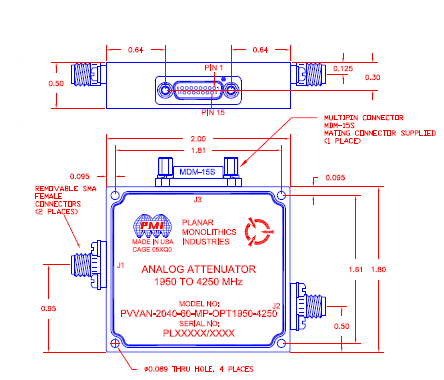

| Size: | 2.0" x 1.80 x 0.50" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
