| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.5 to 30 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 30 |
|---|
| Insertion Loss (dB): | 5 dB |
|---|
| Insertion Loss (dB) - Measured: | 5 dB Typ (up to 20 GHz),
8 dB Typ (up to 30 GHz) |
|---|
| Attenuation (dB): | 15.7 dB |
|---|
| Control Type: | Voltage |
|---|
| Attenuation Control: | 0 to 10 VDC (Non-Linearized) |
|---|
| VSWR: | 2.5:1 Typ |
|---|
| Power Supply: | +15 VDC @ 50 mA Max |
|---|
| Operating Input Power: | 24 dBm CW Max |
|---|
| Input 1dB Compression: | 20 dBm Typ |
|---|
| Logic Input: | 0 to +0.8 V Logic |
|---|
| RF Connectors: | 2.92mm Female |
|---|
| DC Connector: | 15 Pin Micro-D-Female (Mating Connector Supplied) |
|---|

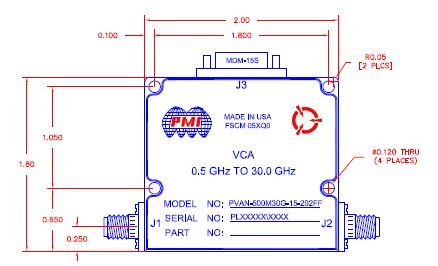

| Size: | 2.0" x 1.8 x 0.5" |
|---|
| Weight: | 3 oz (85 gm) approx |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -50 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
