PVAN-100M300M-20-SFF Active

Voltage-Controlled Attenuator

PVAN-100M300M-20-SFF
Product Feature

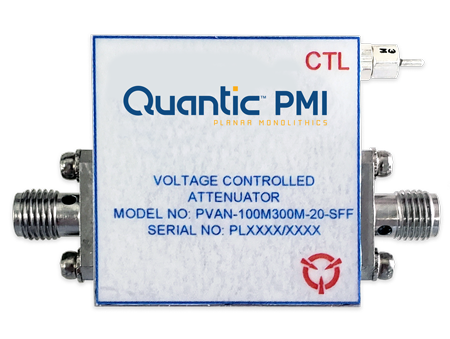

Quantic PMI Model PVAN-100M300M-20-SFF is a voltage-controlled attenuator that operates over the 0.1 to 0.3 GHz frequency supplying 20 dB of attenuation typically with 0 to -5 V control with <1.5 dB of insertion loss and a VSWR of <1.5:1 in the 0 V state. Package size is 1.25" Sq x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 0.1
Frequency Max (GHz): 0.3
Insertion Loss (dB): 1.5 dB Max
Attenuation (dB): 20 dB Typ, 16 dB Min
Control Type: Voltage
Power Supply: 0 to -5 V @ 40 mA Max
VSWR at 0 Volt State: 1.5:1 Max
RF Connectors: SMA Female - removable
Size: 1.25" Sq x 0.5"
Finish: Aluminum
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
