PTP-0R5G40G-2G18G-SFF
Preliminary
PMI Model No. PTP-0R5G40G-2G18G-SFF is a triplexer covering the 0.5 to 40.0 GHz frequency range.
Product Specifications

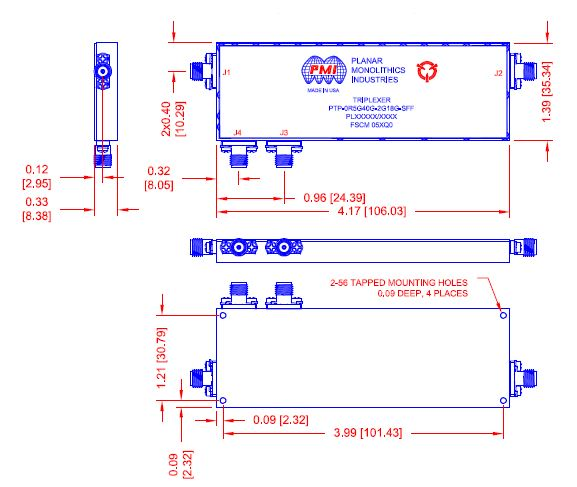

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequencies Fo (GHz): | 1.25 GHz, 10.0 GHz, 29.0 GHz |
|---|
| Insertion Loss: | 2 dB Goal, 4 dB Max |
|---|
| Frequency: | 0.5 to 40.0 GHz (0.5 to 2.0 GHz, 2.0 to 18.0 GHz, 18.0 to 40.0 GHz) |
|---|
| VSWR: | 2.0:1 max. |
|---|
| Connectors: | 2.92 mm (F) |
|---|
| Size: | 4.17" x 1.39" x 0.33" |
|---|
| Finish: | Painted Blue |
|---|
| Crossover Frequency: | 2.0/18.0 GHz |
|---|
| Rejection: | DC to 0.2 GHz, Above 42.0 GHz, ±15% of Crossover, 60 dB min. |
|---|
| Passband Ripple: | 0.5 dB max. Peak to Peak |
|---|
| Impedance: | 50 Ohms |
|---|
| Crossover Range: | ±5% of Crossover |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55ºC to +85ºC |
|---|
