PTB-40-0R118-6R5-21-120VAC-1U-SFF-OPT10M6G

Integrated Microwave Assembly

Product Feature

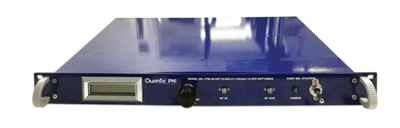

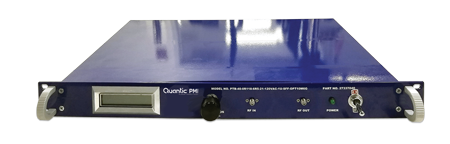

Quantic PMI Model No. PTB-40-0R118-6R5-21-120VAC-1U-SFF-OPT10M6G is an integrated microwave assembly that provides high gain and operates from 0.01 to 6 GHz. This unit features integrated digitally controlled attenuators with ranges up to 60 dB. The attenuation can be controlled via the external optical encoded knob or via RS-232 and Ethernet. The amount of selected attenuation is displayed on the front panel LCD screen.

Standard Features:

  • 6-foot power cord supplied
  • On / Off Power Switch with LED indicator
  • Attenuation level displayed on the LCD display
  • Attenuation control via front panel optical encoded knob or via RS-232 and Ethernet
  • Real-Time attenuation control

Available Options:

  • Ultra-Fine 0.25 dB/Step Attenuation Resolution
  • Internal High-Speed Modulator
  • Other Gain Levels from 0 to 80 dB
  • Frequency Ranges from 0.01 to 40 GHz
  • Higher Output power levels up to +30 dBm
  • 220 VAC (European Compatible) Voltage Supplies

Product Specifications

General Parameters:
Frequency Range: 0.01 to 6 GHz
Gain: 40 dB Min
Gain Flatness: ±1.5 dB (0.1 to 6 GHz)
±3.5 dB (0.01 to 0.1 GHz)
Noise Figure: 6.5 dB Typ (0.1 to 6 GHz)
10.0 dB Typ (0.01 to 0.1 GHz)
OP1dB: +20 dBm Min
Attenuation Range: 50 dB Min, 60 dB Typ (1 dB Steps)
AC Power: 120 VAC, 60 Hz
Control: 0 to 60 dB, Baud Rate 9600
No. of Bits: 8, Stop Bits: 1
No Parity, No Flow Control
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
