PSPA-VHF200C Active

High Power Amplifier

Product Feature

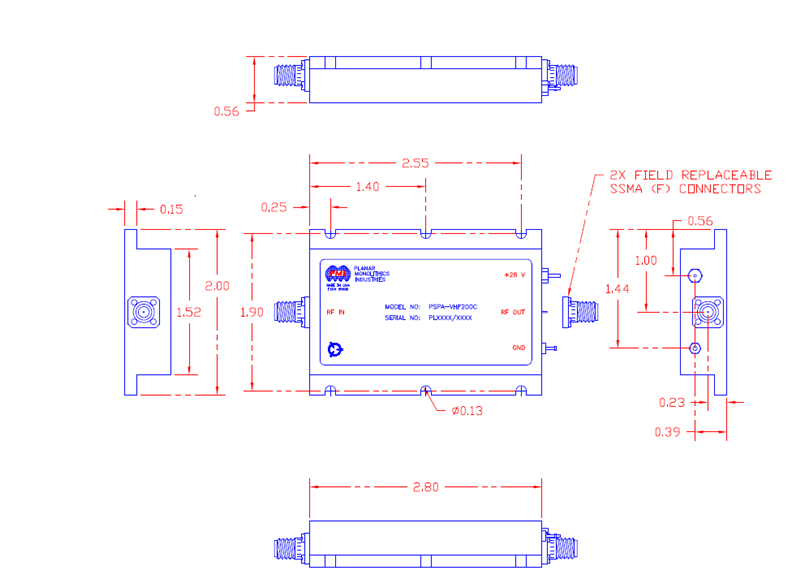

Quantic PMI Model PSPA-VHF200C is a high power amplifier capable of outputting 3 Watts. The frequency range is 0.02 to 0.24 GHz. This amplifier has 30 dB of gain and an output of 35 dBm. Housing size is 2.55" x 1.90" x 0.56" with removable SMA connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 0.02
Frequency Max (GHz): 0.24
Gain (dB): 30 dB Typ
Psat: 3 W Min
Input Power: 10 dBm Typ
DC Supply Voltage: +22 to +32 VDC @ 625 mA Max
RF Connectors In/Out: SMA (F) removable
Finish: Painted Gray
Output Power at 1 dB Compression: 35 dBm Min
Gain Flatness: 30 dB Typ
Weight: <4.2 oz.
Power Output: 3 W Min
Max Input Power: 10 dBm Typ
VSWR: 1.75:1 Typ
Spurious: 60 dBc Typ
Harmonics: 30 dBc Typ
Impedance: 50 Ohm
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
