| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency: | 0.02 to 6.0 GHz |
|---|
| Frequency Min: | 0.02 GHz |
|---|
| Frequency Max: | 6.0 GHz |
|---|
| Insertion Loss: | 1.0 dB max. |
|---|
| Input/Output VSWR: | 1.4:1 max. |
|---|
| Input Power: | 10 W |
|---|
| Peak Input Power: | 1 KW (1 usec Pulse Width, 0.1% Duty Cycle) |
|---|
| CW Input Power: | 10 W |
|---|
| Max Flat Leakage (CW Power): | 12.5 dBm typ. @ 1 W Input |
|---|
| Max Insertion Loss: | 1.0 dB |
|---|
| Max VSWR: | 1.4:1 |
|---|

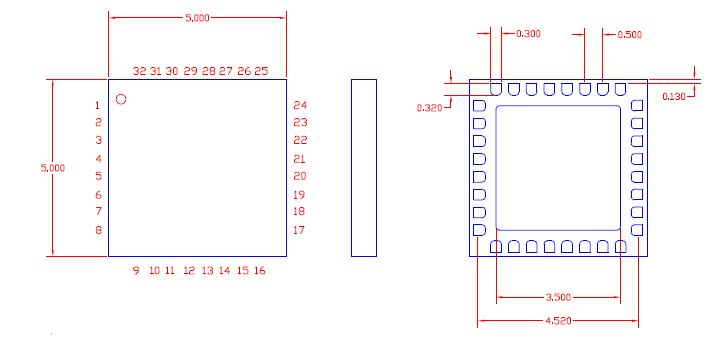

| Case Styles: | QFN |
|---|
| Limiter Type: | Surface Mount |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
