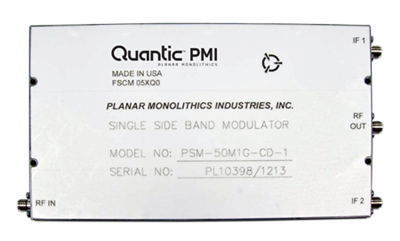

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.05 to 1 |
|---|
| Frequency Min (GHz): | 0.05 |
|---|
| Frequency Max (GHz): | 1 |
|---|
| Conversion loss (dB): | 10 dBm Max |
|---|
| IF Modulation Frequency Range (GHz): | DC to 0.01 |
|---|
| RF Input VSWR: | 2.0:1 Typ (RF = -10 dBm, IF Modulation = 10 dBm) |
|---|
| RF Output VSWR: | 3.0:1 Typ (RF = -10 dBm, IF Modulation = 10 dBm) |
|---|
| RF Carrier: | 0.05 to 1 GHz |
|---|
| RF Power at 1dB Compression: | 5 dBm Typ (IF - 10 dBm) |
|---|
| IF Modulation Power Range: | 7 dBm Min, 13 dBm Max (50 Ohms) |
|---|
| Carrier Suppression: | 15 dBc Min, 20 dBc Typ |
|---|
| Quadrature Phase Accuracy: | ±7.5º Typ, ±10º Max |
|---|
| Quadrature Amplitude Accuracy: | ±1.5 dB Typ, ±2.0 dB Max |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 6.0" x 3.5" x 1.0" |
|---|
| Finish: | Nickel Plate |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
