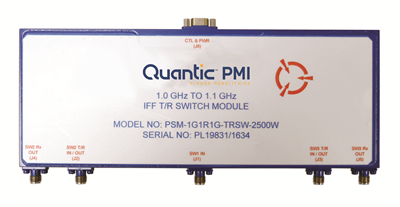

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | T/R Switch Modules |
|---|
| Frequency (GHz): | 1 to 1.1 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 1.1 |
|---|
| Insertion Loss (dB): | 0.8 dB Typ, 1 dB Max (Tx Mode),
0.6 dB Typ, 0.8 dB Max (Rx Mode) |
|---|
| Insertion Loss - Typ (dB): | 0.8 dB |
|---|
| Isolation (dB): | 25 dB Min (J2 to J3),
60 dB Min (J2 to J4),
60 dB Min (J3 to J5) |
|---|
| Isolation - Typ (dB): | 60 dB |
|---|
| Switching Speed: | 250 ns Typ (50% TTL to 10% & 90% RF) |
|---|
| Switching Speed - Typ: | 385 ns |
|---|
| Switching Range PRF: | 600 Hz |
|---|
| Input Power: | 2.5 KW Peak (J1 Only) Tested at 125.89 W CW |
|---|
| Duty Cycle: | 2% Max |
|---|
| Pulse Width: | 17 µs Max |
|---|
| Control Signal: | TTL Logic |
|---|
| Power Supply: | +50 VDC, 60 mA Typ
+5 VDC @ 400 mA Typ |
|---|
| Power / Control Connector: | 9 Pin Micro-D |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 7.75" x 3.0" x 0.575" |
|---|
| Sealing: | Hermetic |
|---|
| Finish: | Blue Epoxy polyimide coating IAW MIL-C-227750, Type 1 over epoxy polyimide primer IAW MIL-P-23377, Type 1, Class 1 or 3. Mounting surface to be free of paint. |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings:: |
|---|
| Temperature (Operating): | -45 °C to +85 °C |
|---|
| Temperature (Storage): | -54 °C to +125 °C |
|---|
