PSA-22-1416-15-SFF Active

Voltage Variable Gain Amplifier

Product Feature
Additional Documents

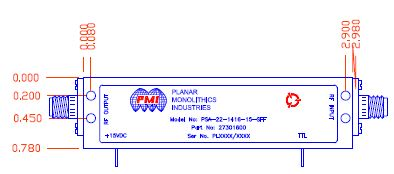

Quantic PMI Model PSA-22-1416-15-SFF is a variable gain amplifier that operates over the frequency range of 14 to 16 GHz that operates over the frequency range 14 to 16 GHz that offer a compression gain of 5 dB and an output saturated power, PSAT @ 15 GHz of 15 dBm with a flatness of ±1 dB.  Housing size is 2.98" x 0.78" x 0.26" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 14
Frequency Max (GHz): 16
Gain (dB): 5 dB Max
Gain Flatness (dB): ±1 dB
Noise Figure (dB): 10 dB Max
DC Voltage Supply (VDC): +12 VDC
Supply Voltages: +12 VDC
Ripple Supply Voltages: 100 mV Max
Input Power: 3 to 7 dBm
Input Max VSWR: 21 Max
Output Max VSWR: 2:1 Max
Output Saturated Power, PSAT @ 15 GHz: 15 dBm Max
Output Power Flatness, Pin = 3 dBm: -1 to +1 dB
Spurious Output Power: -90 dBc / Hz / CW Max
Coherent Spurious Output: -80 dBc Max
Output Harmonic Levels: -20 dBc Max
Max Compression Gain, Pin = 3 to 7 dBm: 5 dB Max
Switch Control Signal: "0" = No Attenuation
"1" = Attenuation
Switch Attenuation Range: 60 dB Min
Max Switching Time: Delay On and Rise Time: 25 ns Max
Delay Off and Rise Time: 25 ns Max
Max Jitter on Rising and Falling Edges: 2.5 ns Max
Min Pulse Width: 100 ns Min
Max Pulse Repetition Rate: 250 kHz
Connectors: SMA Female
Environmental Ratings:
Temperature: -55 °C to +100 °C
Temperature Shocks: 1 Cycle form +50 °C (3 Hours) to -40 °C (3 Hours)
