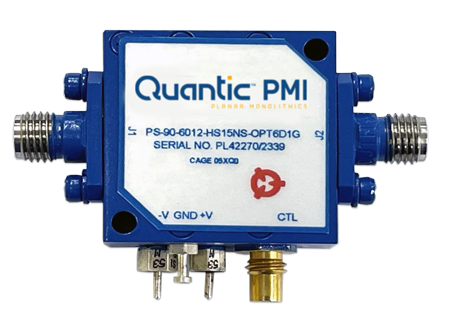

General Parameters: |
Status: | Active |
Frequency Range: | 6.1 GHz |
Frequency Min: | 6.1 GHz |
Frequency Max: | 6.1 GHz |
Phase States: | 0° / 180º |
Insertion Loss: | 2.5 dB Typ, 3.0 dB Max |
VSWR: | 2.0:1 Typ, 2.5:1 Max |
Control Type: | TTL |
Phase Shift: | ±0° goal, ±1° Max |
Modulation Rate: | 1 MHz |
Speed: | 15 ns Typ ON/OFF |
Input Power: | +20 dBm |
Input Power (Survival): | 0.5 Watt CW, 1 µs Pulse Width Survival |
Carrier Suppression: | 20 dB Typ |
Power Supply: | +15 VDC @ 75 mA Max, -15 VDC @ 20 mA Max |
Size: | 1.0" x 1.0" x 0.5" |
Weight: | <2 oz |
Finish: | Painted Blue |
Environmental Ratings: |
Temperature (Operating): | -55 ºC to +85 ºC Operating |
Temperature (Storage): | -65 ºC to +125 ºC Non-Operating |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
