PS-90-6012-HS15NS * Active

Bi-Phase Modulator / Phase Shifter

Buy Now
PS-90-6012-HS15NS *
Product Feature

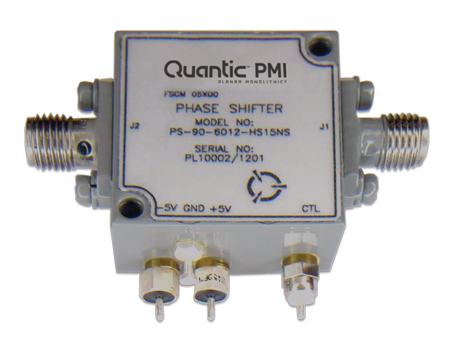

Quantic PMI Model PS-90-6012-HS15NS is a Miniature High-speed Bi-Phase Modulator / Phase Shifter that operates in the 6 to 12 GHz frequency range, 0 & 180° phase states, insertion loss of 2.5 dB typical, VSWR: 2.0:1, operating input power of 20 dBm and a switching speed of 15 ns.  This Model uses TTL control logic (ECL logic is available) in a package size of 1.0" x 1.0" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 6 to 12
Frequency Min (GHz): 6
Frequency Max (GHz): 12
Insertion Loss (dB): 2.5 dB Typ,
3 dB Max
Phase States: 0° / 180°
VSWR: 2.0:1 Typ, 2.5:1 Max
Control Type: TTL
Speed: 15 ns Typ On/Off
Input Power: 20 dBm Max
Input Power (Survival): 0.5 W CW, 1 µs Pulse Width
Carrier Suppression: 20 dB Typ
Power Supply: +5 VDC @ 75 mA Max,
-5 VDC @ 20 mA Max
RF Connectors: SMA Female
Size: 1.0" x 1.0" x 0.5"
Finish: Painted Gray
Weight: 2 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
