PS-90-4080 * Active

Bi-Phase Modulator / Phase Shifter

Buy Now
PS-90-4080 *
Product Feature

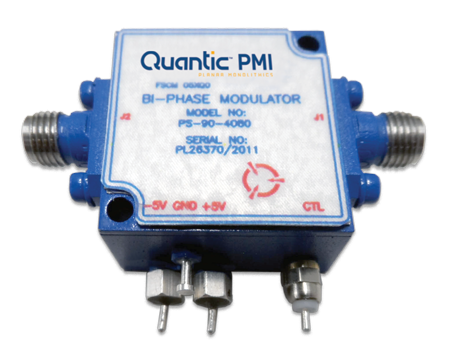

Quantic PMI Model PS-90-4080 is a 0 to 180°, Miniature, Bi-Phase Modulator / Phase Shifter, operating over the band from 4 to 8 GHz with TTL control logic and low insertion loss.  Package size is 1.0" x 1.0" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 4 to 8
Frequency Min (GHz): 4
Frequency Max (GHz): 8
Insertion Loss (dB): 2.5 dB Typ,
3 dB Max
Phase States: 0° / 180°
VSWR: 2.0:1 Typ
Control Type: TTL
Speed: 75 ns Max
Input Power: 20 dBm
Input Power (Survival): 0.5 W CW
Carrier Suppression: 20 dB Typ
Power Supply: +5 VDC @ 75 mA Max,
-5 VDC @ 20 mA Max
RF Connectors: SMA Female
Size: 1.00" x 1.00" x 0.50"
Weight: <2 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
