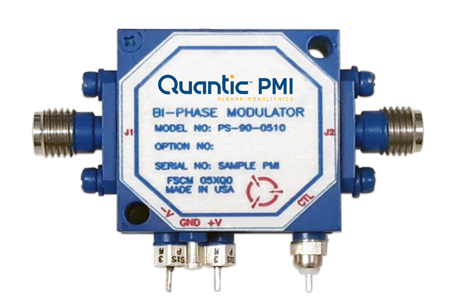

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.5 to 1 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 1 |
|---|
| Insertion Loss (dB): | 2.5 dB Typ,
3 dB Max |
|---|
| Phase States: | 0° / 180° |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Control Type: | TTL |
|---|
| Switching Time: | Rise: 10 ns Typ, 15 ns Max,
Fall: 10 ns Typ, 15 ns Max,
Delay On: 50 ns Typ, 75 ns Max,
Delay Off 55 ns Typ, 75 ns Max,
(25 ns High Speed Units Available) |
|---|
| Input Power: | 20 dBm Operating,
0.5 W CW, 1 µs Pulse Width Survival |
|---|
| Carrier Suppression: | 15 dB, 20 dB Typ |
|---|
| Control: | TTL (ECL is Available) |
|---|
| Power Supply: | +5 VDC @ 75 mA Max
- 5 VDC @ 20 mA Max
Other Voltages Available |
|---|
| RF Connectors: | SMA Female |
|---|
| Size: | 1.0” x 1.0” x 0.5”
(Slim-Line Versions Available) |
|---|
| Weight: | 2 oz |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Storage): | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
