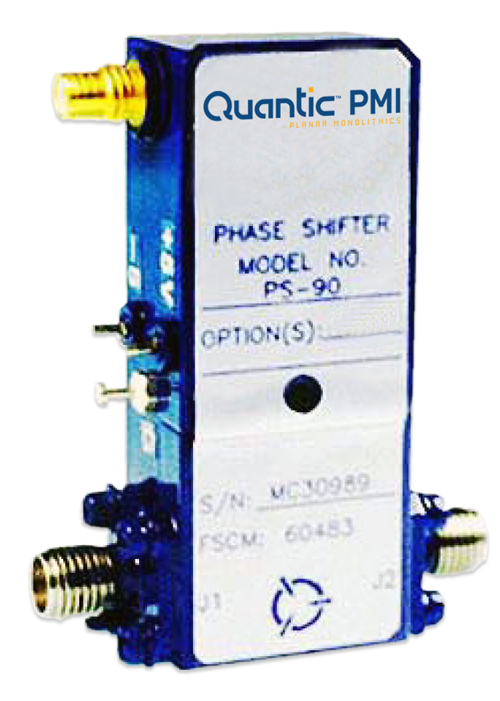

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 10.2 to 10.8 GHz |
|---|
| Frequency Min: | 10.2 GHz |
|---|
| Frequency Max: | 10.8 GHz |
|---|
| Phase States: | 0° / 180° |
|---|
| Insertion Loss: | 2.0 dB Max. with Logic "0" |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Control Type: | TTL |
|---|
| Differential Phase Shift: | 90° or 180° |
|---|
| Switching Time: | 10 nS Maximum |
|---|
| Switching Speed Delay On: | 50 nS Maximum |
|---|
| Switching Speed Delay Off: | 50 nS Maximum |
|---|
| Input Power: | +20dBm Operating |
|---|
| Input Power (Survival): | 0.5W CW, 1uS Pulse Width |
|---|
| Carrier Suppression: | 15dB Minimum, 20dB Typical |
|---|
| Control: | TTL (ECL Available) |
|---|
| Power Supply: | +5 VDC @ 75 mA Max, -5 VDC @ 20 mA Max |
|---|
| Size: | 1.97" x 0.79" X 0.54" |
|---|
| Weight: | 1.50 ounces |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
