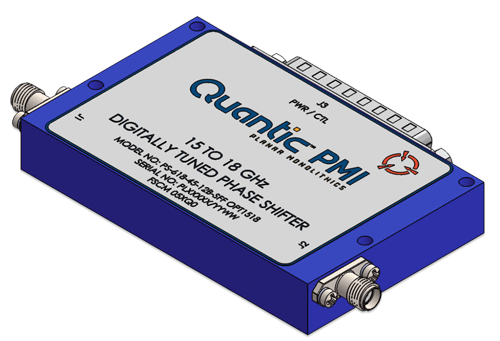

PS-618-45-12B-SFF OPT1518
Preliminary
PMI model PS-618-45-12B-SFF OPT1518 is a digitally tuned phase shifter optimized over the 15 to 18 GHz frequency range for a fine-tuning range of 45 degrees. This unit is tuned using twelve TTL control bits.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 6 TO 18 GHz, OPTIMIZED FOR 15 TO 18 GHz |
|---|
| Frequency Min: | 6 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Control Bits: | 12 BITS* (CALIBRATED TO 12 BITS, MEASURED TO AT LEAST 11 BIT RESOLUTION) |
|---|
| Insertion Loss: | 15 dB Max |
|---|
| Phase Shift Range: | 45° NOMINAL (45° - 1 LSB) |
|---|
| Switching Speed: | 500 ns Max |
|---|
| Logic: | TTL |
|---|
| Phase Accuracy: | ± 3° Typ, ± 7.5° Max |
|---|
| VSWR: | 2:1 Max (J1 and J2) |
|---|
| Power Supply: | +15 V @ 250 mA Max
-15 V @ 100 mA Max |
|---|
| RF Connectors: | SMA (F) |
|---|
| Control & Power Connector: | 25 PIN D-SUB (M) |
|---|
| Finish: | PAINTED BLUE, MOUNTING SURFACE GOLD PLATED |
|---|
| Operating Input Power: | +20 dBm Max (Survival) |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | 10°C TO +30°C |
|---|
| Temperature (Storage): | -40°C TO +85°C |
|---|
