PS-5G18G-400-A-SFF * Active

Low Phase Noise, Analog Phase Shifter

Buy Now

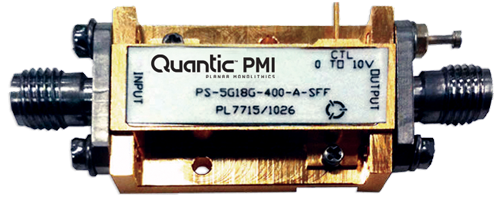

Quantic PMI Model No. PS-5G18G-400-A-SFF is a 5 to 18 GHz, Low Phase Noise, Analog Phase Shifter with Capability for Phase Shifting from 0 to 400°. The unit operates from a single positive control voltage of 0 to +10 VDC with a phase voltage sensitivity of 40° per volt. This model offers a typical modulation bandwidth of 50 MHz and is supplied in our PE2 housing measuring only 1.08” x 0.71” x 0.29” and can be used with the SMA connectors or in a surface mount configuration.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 5 - 18 GHz
Frequency Min: 5 GHz
Frequency Max: 18 GHz
Phase Shift Range: 400°
Control Voltage: 0 to +10 VDC
Insertion Loss: 12 dB Max, 8 dB Typ @ 5.0 to 10.0 GHz,
7 dB Max, 4 dB Typ @ 10.0 to 18.0 GHz
Return Loss (In/Out): 8 dB Typ - Measured 11 dB
Modulation Bandwidth: 50 MHz Typ - Measured 50 MHz Typ
Connectors: SMA (F) removable
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Non Operating): -65 ºC to +150 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
