PS-500M2G-8B-SFF * Active

8 Bit Digitally Controlled Phase Shifter

Buy Now

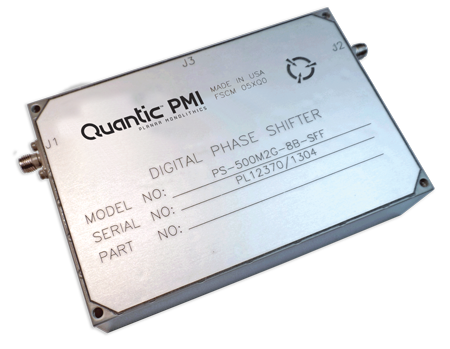

PS-500M2G-8B-SFF *
Product Feature

Quantic PMI Model PS-500M2G-8B-SFF is a 8 Bit Digitally Controlled Phase Shifter that operates over the 0.5 to 2 GHz frequency range that has a typical insertion loss of 10 dB and offers 360° of phase shift via 8 Bit TTL control. The phase shift error is <±10° and the amplitude error is <±1 dBwith a switching speed is 500 ns maximum. This unit operates on ±15 VDC and supplied in a housing measuring 4.95" x 3.38" x 1.0" with a 15 Pin subminiature D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 2
Frequency Min (GHz): 0.5
Frequency Max (GHz): 2
Insertion Loss (dB): 13 dB Max
Insertion Loss - Measured (dB): 13 dB Max - Measured 9.77 dB
Phase Shift Range: 360°
Amplitude Error: ±1 dB Max
Phase Shift Error: ±10° Ma
Switching Speed: 500 ns Max
RF Input Power: 0 dBm Max
Power Supply: ±15 VDC
No. Control Bits: 8 Bit TTL
Control & Power Connector: 15 Pin Sub-D Male
RF Connectors: SMA Female
Size: 4.95" x 3.38" x 1.0"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
