| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 0.38 to 0.43 GHz |
|---|
| Frequency Min: | 0.38 GHz |
|---|
| Frequency Max: | 0.43 GHz |
|---|
| Phase Shift Range: | 360° |
|---|
| Control Voltage: | ±10 VDC |
|---|
| RF Input Power: | 0 dBm |
|---|
| RF Output Power: | 20 dBm |
|---|
| Control Bandwidth: | DC to 50 kHz |
|---|
| Phase Switching Speed: | 100 ns Typical |
|---|
| Amplitude Variation: | 0.5 dBm Maximum |
|---|
| Phase Variation From Set Point: | ±0.1° Maximum |
|---|
| VSWR: | 1.2:1 Max |
|---|
| Power Supply: | +15 V @ 150 mA Typical, -15 V @ 25 mA Typical |
|---|
| Connectors: | SMA Female |
|---|

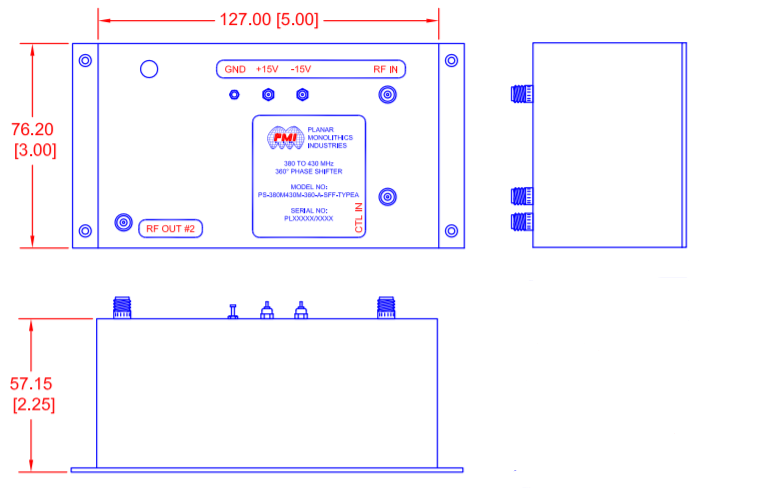

| Size: | 127 mm x 76.20 mm x 57.15 mm, 5.00" x 3.00" x 2.25" Excluding Mounting Plate |
|---|
| Finish: | Blue Epoxy |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -0 ºC to +70 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
