PS-360-AC-810-7224-IQ-RH Active

Phase Shifter - I/Q High Speed Modulator

PS-360-AC-810-7224-IQ-RH
Product Feature

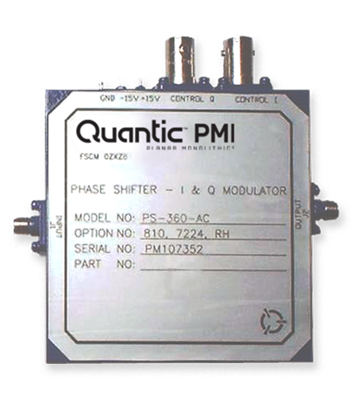

Quantic PMI Model PS-360-AC-810-7224-IQ-RH is a 8.5 to 10.0 GHz analog controlled phase shifter / I/Q high speed modulator. This model offers low spurious harmonics. It is designed for +15/-15 VDC supply voltage with low insertion loss, and VSWR of 2.0:1. Housing measures 3.25" x 3.25"x 0.85" with SMA female connectors and BNC female control connectors for the I/Q control.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8.5 to 10
Frequency Min (GHz): 8.5
Frequency Max (GHz): 10
Insertion Loss (dB): 12 dB Max
Phase Shift Range: 360°
VSWR: 2:1 Max
RF Connectors: SMA Female
Power/ Logic Connectors: BNC Female
Size: 3.25" x 3.25" x 0.85"
Weight: 1 oz Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -55 ºC to +85 ºC (Operating),
-65 ºC to +125 ºC (Non-Operating)
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
