PS-1G4G-180-A-SFF Active

Analog Phase Shifter

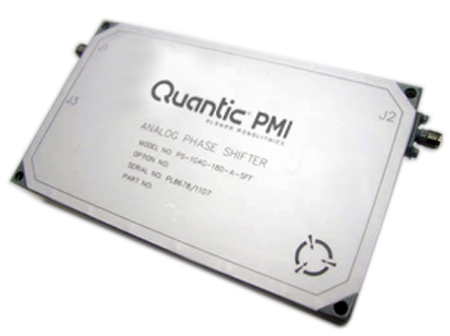

Model Number PS-1G4G-180-A-SFF is a 1 to 4 GHz, Analog Phase Shifter that operates from 0 to 180°. Optional digital interface is available.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 1.0 - 4.0 GHz
Frequency Min: 1 GHz
Frequency Max: 4.0 GHz
Phase Shift Range: 0 to 180°
Control Voltage: +11V / -11V
RF Impedance: 50 Ohms
Insertion Loss: 5.0 dB Typ
VSWR: 2.0:1 Typ - Measured 2.0:1 Typ
Control Connector: Male 15 PIN Sub-D
Connectors: SMA Female
Size: 5.0"L x 3.0"W x 0.9"H
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Temperature (Non Operating): -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
