PS-100M1200M-9B-SFF Active

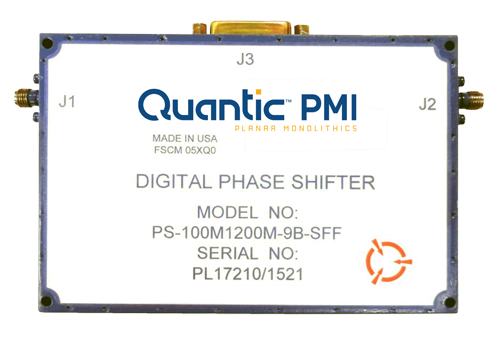

PMI Model No. PS-100M1200M-9B-SFF is a 100 to 1200MHz, 9-Bit Digitally Controlled Analog Phase Shifter with capability for phase shifting from 0° to 360°. The unit consists of an analog phase shifter and a digital to analog converter. Nine logic input lines allow 512 discrete values of phase.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 0.1 to 1.2 GHz
Frequency Min: 0.1 GHz
Frequency Max: 1.2 GHz
Control Bits: 9-Bit TTL
Insertion Loss: 13 dB max.
Phase Shift Range: 360° typ
Amplitude Error: ±1.0 dB typ
Phase Shift Error: ±10° typ
Switching Speed: 500 nsec max
Power Supply: +15 V @ 250 mA typ, -15 V @ 20 mA typ
Size: 4.95" X 3.38" X 1.00"
Weight: 14 oz.
RF Connectors: SMA(F)
Control & Power Connector: 15 Pin Sub-D (male)
Finish: Painted Blue
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
