PPA-13D75G14D5G-45-37-7-SFF Active

Low Noise Power Amplifier

PPA-13D75G14D5G-45-37-7-SFF
Product Feature

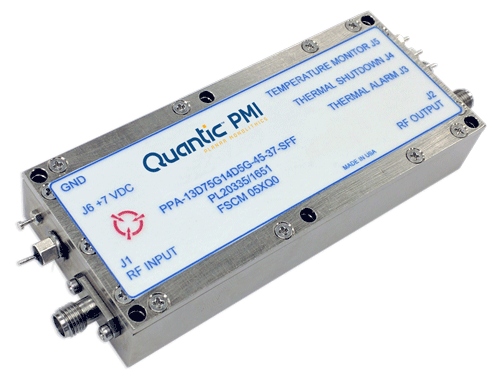

Quantic PMI Model PPA-13D75G14D5G-45-37-7-SFF is a 13.75 to 14.5 GHz, Low Noise Power Amplifier that provides 45 dB of gain with a gain flatness of ±1 dB, a noise figure of 7 dB typical and offers an OP1dB of 37 dBm minimum. Package size is 4" x 1.75" x 0.7" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 13.75 to 14.5
Frequency Min (GHz): 13.75
Frequency Max (GHz): 14.5
Gain (dB): 45 dB Min
Gain (dB) - Measured: 45 dB Min - Measured 49.34 dB
Gain Flatness (dB): ±1 dB Typ
Gain Flatness (dB) - Measured: ±1 dB Typ. - Measured ±0.19 dB
Noise Figure (dB): 7 dB Max
VSWR In/Out: 1.3:1 Max - Measured 1.28:1
OP1dB (dBm): 37 dBm Min
OIP3: 44 dBm Typ
DC Voltage: +8 to +9 VDC
DC Current Draw: 6 A Typ - Measured: <-20 dBm: 3.83 A,
-20 to -15 dBm: 4.42 A,
>-15 dBm: 5.73 A
Gain Variation Over Temperature: ±2 dB Typ - Measured ±1.92 dB
Non-Harmonics: -60 dB Max
Connectors: SMA Female
Size: 4" x 1.75" x 0.7"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -10 ºC to +60 ºC
Temperature (Non-Operating): -55 ºC to 100 ºC
