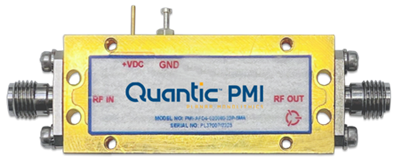

Quantic PMI Model PMI-AFD4-020080-23P-SMA is a 2.0 to 8.0 GHz amplifier that provides a maximum gain of 35 dB with a maximum gain flatness of ±2.0 dB; a maximum noise figure of 3.5 dB and a maximum VSWR of 2.0:1. This model is outfitted with SMA female connectors in a housing that measures 1.83" x 0.76" x 0.20".

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2.0 to 8.0 GHz
Frequency Min: 2.0 GHz
Frequency Max: 8.0 GHz
Gain: 28 dB Min
35 dB Max
Noise Figure: 3.5 dB Max
Gain Flatness: + /- 2.0 dB Max
OP1dB: 23 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage Supply: +15 VDC
DC Current Draw: 370 mA
Size: 1.83" X 0.76" X 0.20"
Finish: Gold Plated
Connectors In/Out: SMA (F)
Environmental Ratings:
Temperature (Operating): 0 °C to + 70 °C
Temperature (Storage): -23 °C to + 95 °C
Humidity: MIL-STD-202F, METHOD 103B COND. B
Shock: MIL-STD-202F, METHOD 213B COND. B
Vibration: MIL-STD-202F, METHOD 204D COND. B
Altitude: MIL-STD-202F, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202F, METHOD 107D COND. A
