PMC-9G10G-7D9-SFF Active

Monopulse Comparator

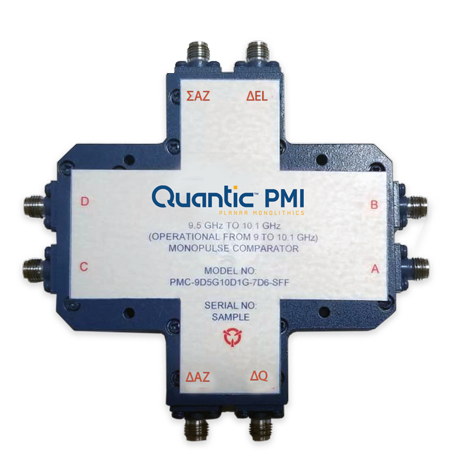

PMC-9G10G-7D9-SFF
Product Feature

Quantic PMI Model PMC-9G10G-7D9-SFF is a Monopulse Comparator operating over the 9 to 10 GHz frequency range that offers a insertion loss of 1.9 dB maximum if input signals at Ports A, B, C and D are equal in amplitude or power and in-phase with an output at Port ΣAZ. Insertion loss of 6.8 dB maximum IF input signal at Port A, B, C or D and all other ports are terminated to 50 ohms with an output at Ports ΔEL, ΣAZ, ΔQ or ΔAZ, while maintaining a maximum amplitude balance of ±0.6 dB and a maximum phase balance of ±6°. Housing size is 3.48" x 3.48" x 0.43" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 9 to 10
Frequency Min (GHz): 9
Frequency Max (GHz): 10
Phase Balance: ±6° Max
Insertion Loss (dB): 1.9 to 7.9 dB Max
Insertion Loss - Measured (dB): 1.9 to 7.9 dB Max
Measured 6.18 dB Min, 7.67 dB Max
Isolation (dB): 18 dB Min
Isolation - Measured (dB): 18 dB Min - Measured 19.37 dB
Amplitude Balance: ±0.6 dB Max - Measured ±0.535 dB
VSWR: 1.6:1 Max - Measured 1.5:1
Impedance: 50 Ohm
Power Handling: Average: 10 W Max (Ports A, B, C & D),
Peak: 0.1 kW Max
Connectors: SMA Female
Finish: Painted Blue
Size: 3.48" x 3.48" x 0.43"
88.49 mm x 88.49 mm x 11 mm
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating),
-65 °C to +125 °C (Storage)
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
