PMC-600M3G500M-SFF Preliminary

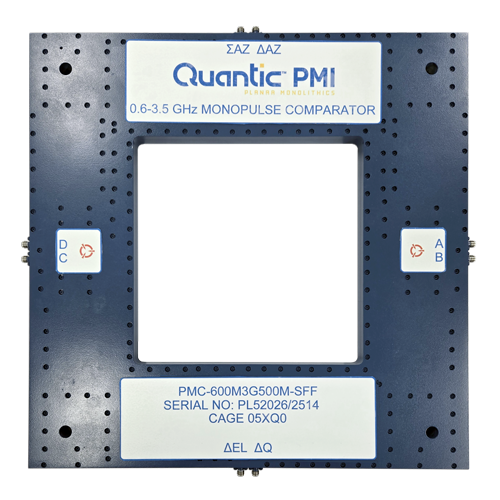

PMI Model PMC-600M3G500M-SFF is a monopulse comparator operating over the 0.6 to 3.5 GHz frequency range. This model offers a maximum 4.2 dB insertion loss while maintaining a maximum amplitude balance of ±1.6 dB and a maximum phase balance of ±12°.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 0.6 GHz
Frequency Max: 3.5 GHz
Phase Balance: ±12° MAX
Insertion Loss: 4.2 dB MAX
Isolation: 15 dB MIN
Amplitude Balance: ±1.6 dB MAX
VSWR: 1.70:1 MAX
Impedance: 50 OHMs
Power Handling: AVERAGE: 30 WATT MAX
Connectors: SMA Female
Finish: Pained Blue
Environmental Ratings:
Temperature: -20 °C TO +85 °C (Operating)
-30 °C TO +95 °C (Storgae)
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 1070 COND. A
