PMC-33G36G-292FF Preliminary

PMI Model PMC-33G36G-292FF is a monopulse comparator operating over the 33 to 36 GHz frequency range. This model offers a maximum 5 dB insertion loss while maintaining a maximum amplitude balance of ±1.5 dB and a maximum phase balance of ±20°.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 33 GHz
Frequency Max: 36 GHz
Phase Balance: ±20° Max
Insertion Loss: 5 dB Max
Isolation: 10 dB Min
Amplitude Balance: ±1.5 dB Max
VSWR: 2.0:1 Max
Impedance: 50 OHMs
Power Handling: AVERAGE: 10 WATT Max
PEAK: 1 KW Max
Connectors: 2.92 Female
Finish: Painted Blue

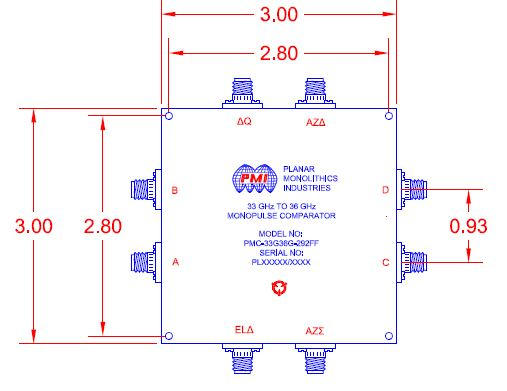

Size: 76.2 mm x 76.2 mm x 11 mm
3.Q" X 3.Q" X 0.433"
Environmental Ratings:
Temperature: -55 °C TO +85 °C (OPERATING)
-65 °C TO +125 °C (STORAGE)
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
