PMC-16G17G-SMA Active

Monopulse Comparator

Buy Now
PMC-16G17G-SMA
Product Feature

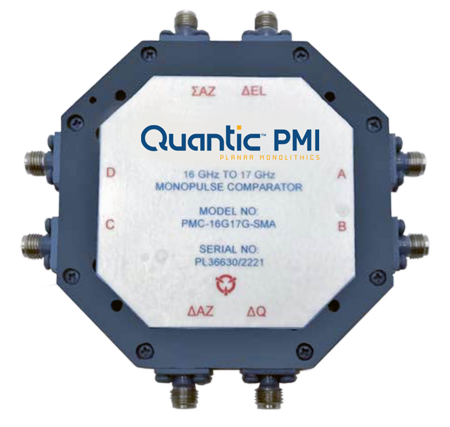

Quantic PMI Model PMC-16G17G-SMA is a monopulse comparator operating over the 16 to 17 GHz frequency range that offers a maximum 2.6 dB insertion loss while maintaining a maximum amplitude balance of ±0.8 dB, a maximum phase balance of ±10° and a maximum VSWR of 1.60:1. Housing size is 3.125" x 3.125" x 0.44" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 16 to 17
Frequency Min (GHz): 16
Frequency Max (GHz): 17
Phase Balance: ±10° Max
Insertion Loss (dB): 2.6 dB Max
Isolation (dB): 18 dB Min
Amplitude Balance: ±0.8 dB Max
VSWR: 1.60:1 Max
Impedance: 50 Ohm
Power Handling: Average: 30 W Max
Peak: 1 KW Max
Connectors: SMA Female
Finish: Painted Blue
Size: 3.125" x 3.125" x 0.44"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating)
-65 °C to +125 °C (Storage)
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 1070 COND. A
