PMC-14G15G-SMA Preliminary

Monopulse Comparator

PMC-14G15G-SMA

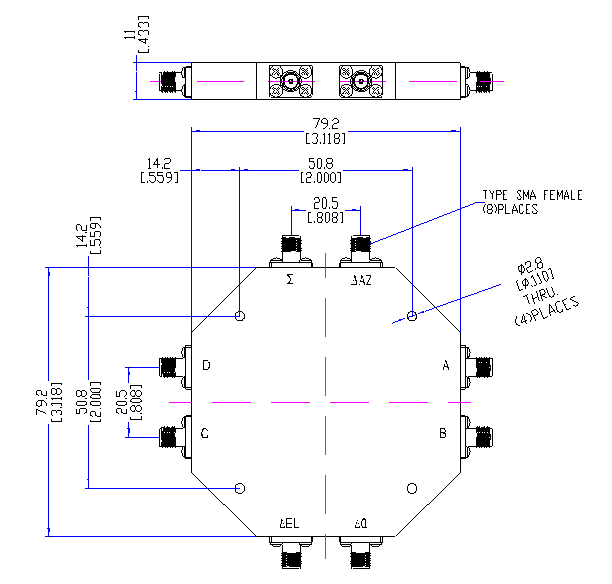

Quantic PMI Model PMC-14G15G-SMA is a monopulse comparator operating over the 14 to 15 GHz frequency range that a maximum 2.6 dB insertion loss while maintaining a maximum amplitude balance of ±0.8 dB, a maximum phase balance of ±10° and a maximum VSWR of 1.60:1. Housing size is 3.118" x 3.118" x 0.433" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 14 to 15
Frequency Min (GHz): 14
Frequency Max (GHz): 15
Phase Balance: ±10° Max
Insertion Loss (dB): 2.6 dB Max
Isolation (dB): 18 dB Min
Amplitude Balance: ±0.8 dB Max
VSWR: 1.60:1 Max
Impedance: 50 Ohm
Power Handling: Average: 30 W Max
Peak: 1 KW Max
Connectors: SMA Female
Finish: Painted Blue
Size: 3.125" x 3.125" x 0.44"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -40 °C to +85 °C
Humidity: Up to 95%, Non-Condensing
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
