PM2-34-218-15-SFF-1 Active

Low Noise Amplifier

Product Feature

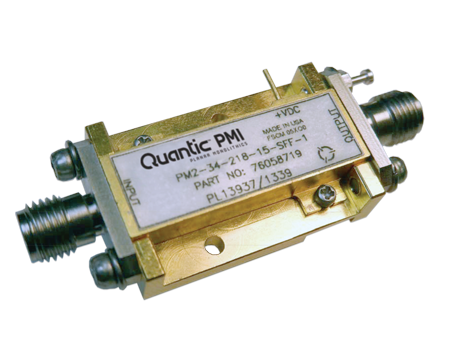

Quantic PMI Model PM2-34-218-15-SFF-1 is a 2.5 to 18 GHz low noise amplifier with a gain window of 32 to 36 dB @ -40 to +95 ºC and 32 to 37 dB @ -54 to +95 ºC and a gain flatness of ±1.5 dB maximum. The noise figure is 4.7 dB maximum and offers an OP1dB of 16 dBm minimum. The operating voltage is +15 VDC (±10 %) and the current draw is 350 mA maximum. Supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2.5 to 18
Frequency Min (GHz): 2.5
Frequency Max (GHz): 18
Gain (dB): 32 to 36 dB
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 4.7 dB Max
OP1dB (dBm): 16 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 VDC (±10 %)
DC Current (mA): 350 mA Max
Input Power: 15 dBm CW Max
Connectors: SMA Female - removable
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -54 ºC to +95 ºC Operating,
-62 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 106F
Shock: MIL-STD-202F, Method 213B Cond. A
Vibration: MIL-STD-202F, Method 214A Cond. H
Altitude: MIL-STD-202F, Method 105C Cond. C
Temperature Cycle: MIL-STD-202F, Method 107G
