PLO-840M-150-15DBM-12V-SF Active

840 MHz Phase-Locked Oscillator

Product Feature

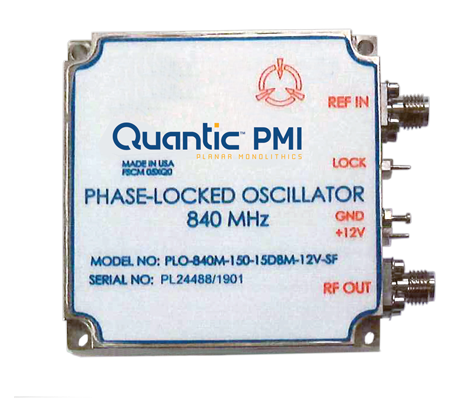

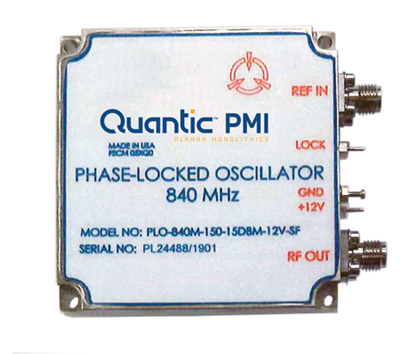

Quantic PMI Model No. PLO-840M-150-15DBM-12V-SF is an 840 MHz Phase-Locked Oscillator. This model is offered in a slim line housing measuring only 0.6" height.

Product Specifications

General Parameters:
Status: Active
Output Frequency (fo): 0.84 GHz
Frequency Stability: Same as Reference
Output Power: +20 dBm Min
Spurious: <-80 dBc
Phase Noise: <-120 dBc/Hz @ 10 KHz Typ, <-115 dBc/Hz Max
<-145 dBc/Hz @ 100 KHz Typ, <-140 dBc/Hz Max
Harmonics: <-25 dBc
Sub Harmonics: <-60 dBc
Size: 2.25" x 2.25" x 0.60"
Finish: Nickel Plated
Reference Phase Noise (SSB): <-140 dBc/Hz @ 1 KHz
<-150 dBc/Hz @ 10 KHz
Connectors: SMA (F)
Lock Detector: High (+3.3 V) is Lock
Stability: Same as Reference
Reference: 10 MHz, Power = 3 dBm ± 3 dB
Reference Input Imedance: 50 Ohms
VCC: +12 ± 0.5 V @ 200 mA Typ, 300 mA Max
Frequency: 840 MHz
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -40 °C to +125 °C
