| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 6.83469 |
|---|
| Frequency Stability: | Ref Input |
|---|
| Load VSWR: | 2.0:1 |
|---|
| Output Power (dBm): | 14 dBm |
|---|
| Spurious: | -80 dBc |
|---|
| Phase Noise: | 10 KHz Offset = 20 Log (N + 3)*
100 KHz Offset = -120 dBc/Hz
1 MHz Offset = 140 dBc/Hz |
|---|
| Harmonics: | -25 dBc |
|---|
| Reference Input Power: | 0 ± 3 dBm |
|---|
| Frequency: | 6.83469 GHz |
|---|
| Alarm: | High Z |
|---|
| Power Output: | 14 dBm |
|---|
| DC Supply: | +12 to +15 VDC @ 250 mA |
|---|
| Modulation: | 250 Hz with Peak Amplitude of 80 - 800 mV Pk-Pk |
|---|
| Reference Input Frequency: | 13.40134393 MHz |
|---|
| Connectors: | SMA Female |
|---|

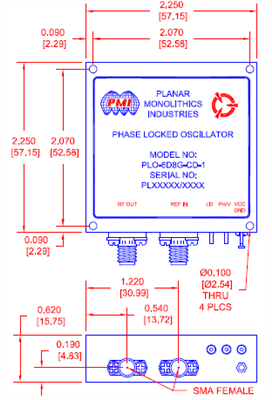

| Size: | 2.25" x 2.25" x 0.62" |
|---|
| Finish: | Nickel Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -25 °C to +70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +125 °C |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
