PLO-516.096-CD-1 Preliminary

Phase Locked Oscillator

PLO-516.096-CD-1
Product Feature

Quantic PMI Model PLO-516.096-CD-1 is a Phase Locked Oscillator with an output frequency of 0.516096 GHz. This model provides minimum output power of +12 dBm with all spurs held to -65 dBc and harmonics held to 30 dBc. Housing measures 2.25" x 2.25" x 0.62" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Output Frequency - fo (GHz): 0.516096
Output Power (dBm): 12 dBm Min
Spurious: -65 dBc Max
Harmonics: -30 dBc Max
Reference Input Power: 0 ± 2 dBm
Reference Frequency: 0.064512 GHz
DC Supply: +5.5 ± 0.25 VDC @ 400 mA Max
+15 ± 0.5 VDC @ 50 mA Max
Reference Phase Noise: -142 dBc/Hz @ 1 KHz Max
-145 dBc/Hz @ 10 KHz Max
-155 dBc/Hz @ 100 KHz Max
Lock Indicator: TTL 1 Bit
Locked: "1"
Unlocked: "0"
DC & LD Connectors: Solder in Feedthrus
Connectors: SMA Female - removable

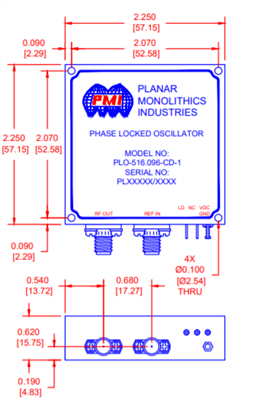

Size: 2.25" x 2.25" x 0.62"
Finish: Nickel Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Vibration: 6 Grms, 20 - 2000 Hz, 3 Axes, 10 Min
