PLO-48D8G-EXT Active

Phase Locked Dielectric Resonator Oscillator (PLDRO)

PLO-48D8G-EXT
Product Feature

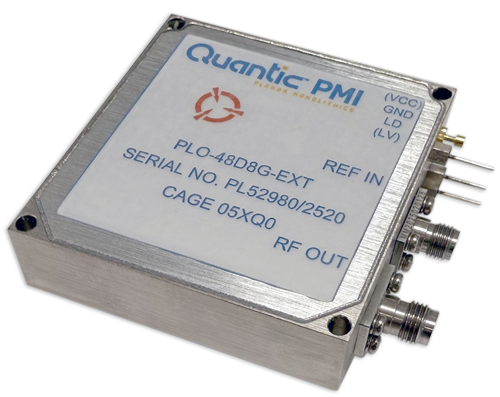

Quantic PMI Model PLO-48D8G-EXT is an externally referenced Phase Locked Dielectric Resonator Oscillator (PLDRO) covering the frequency of 48.8 GHz.  Package size is 2.25” x 2.25” x 0.62” with 2.4mm female (RF OUT) and SMA female (REF IN) connectors.

Product Specifications

General Parameters:
Status: Active
Output Frequency - fo (GHz): 48.8
Frequency Stability: Same as reference
Load VSWR: 1.5:1 Max
Output Power (dBm): 10 dBm Min
Spurious: -60 dBc Max
Phase Noise: -80 dBc/Hz Max @ 100 Hz
-93 dBc/Hz Max @ 1 kHz
-94 dBc/Hz Max @ 10 kHz
-102 dBc/Hz Max @ 100 kHz
-128 dBc/Hz Max @ 1 MHz
Harmonics: -20 dBc Max
External Reference: 100 MHz (sine wave)
Reference Phase Noise (SSB): -137 dBc/Hz Max @ 100 Hz
-155 dBc/Hz Max @ 1000 Hz
-160 dBc/Hz Max @ 10 kHz
Lock Detector: TTL High = Lock
Input Level: 3 to 10 dBm
DC Current: 500 mA Typ
Supply Voltage: +12 VDC
Connectors: RF Out: 2.4mm Female
REF IN: SMA Female
Power: THR Capacitor
Size: 2.25" x 2.25" x 0.62"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ˚C to +70 ˚C
Non-Operating Temperature: -50 ˚C to +80 ˚C
