PLO-28G-100M-EXT
Preliminary
Phase Locked Oscillator (PLO)

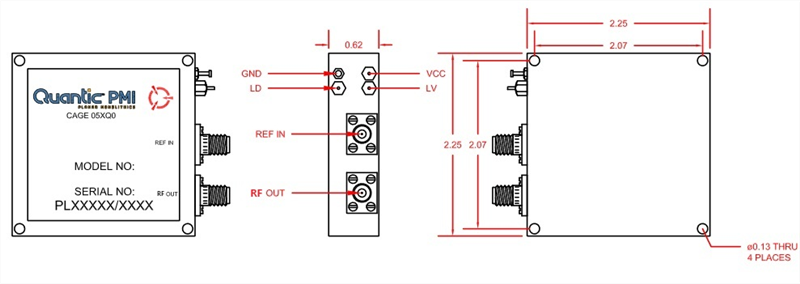

Quantic PMI Model PLO-28G-100M-EXT is an externally referenced Phase Locked Oscillator (PLO) covering the frequency of 28 GHz. Package size is 2.25” x 2.25” x 0.62” with 2.92mm female (RF OUT) and SMA female (REF IN) connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 28 |
|---|
| Load VSWR: | 1.5:1 Max |
|---|
| Output Power (dBm): | 17 dBm Min |
|---|
| Spurious: | -70 dBc Max |
|---|
| Phase Noise: | -80 dBc/Hz Max @ 100 Hz
-95 dBc/Hz Max @ 1 kHz
-100 dBc/Hz Max @ 10 kHz
-102 dBc/Hz Max @ 100 kHz
-120 dBc/Hz Max @ 1 MHz |
|---|
| Harmonics: | -20 dBc Max |
|---|
| Sub Harmonics: | -60 dBc Max |
|---|
| External Reference: | 100 MHz |
|---|
| Input Level: | 3 to 10 dBm |
|---|
| Look Detect: | TTL High - Lock |
|---|
| DC Current: | 400 mA Typ |
|---|
| Supply Voltage: | +15 VDC DC |
|---|
| Connectors: | RF OUT: 2.92mm Female
REF IN: SMA Female
Power: Thru Capacitor |
|---|
| Size: | 2.25” x 2.25” x 0.62” |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +80 °C |
|---|
