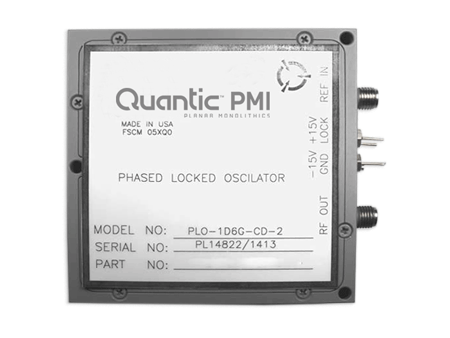

| General Parameters: |
|---|
| Status: | Active |
|---|
| Output Frequency - fo (GHz): | 1.6 |
|---|
| Load VSWR: | 1.5:1 Max |
|---|
| Output Power (dBm): | 14 dBm Min |
|---|
| Spurious: | -60 dBc Min |
|---|
| Phase Noise: | 20 log (fo/fi) +6 dB Typ @ 10 KHz to 100 KHz
-100 dBc/Hz Min @ 100 KHz
-120 dBc/Hz Min @ 1 MHz |
|---|
| Harmonics: | -20 dBc Min |
|---|
| Phase Lock Alarm: | TTL "H": Out of Lock
TTL "L": Lock |
|---|
| VSWR: | <1.5:1 (All Phases) |
|---|
| Reference: | 100 ± 0.01 MHz, 0 ± 3 dBm |
|---|
| Primary Power: | +12 to +15.5 VDC @ 370 mA Max
-12 to -15.5 VDC @ 100 mA Max |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 2.75" x 2.75" x 0.75" |
|---|
| Finish: | Painted Gray |
|---|
| Weight: | 280 g (10 oz) Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -15 °C to +85 °C |
|---|
| Non-Operating Temperature: | -20 °C to +85 °C |
|---|
| Vibration: | MIL-E-5400T 3.2.24.5 Figure 2, Sheet 1 of 3, Curve III |
|---|
| Shock: | MIL-E-5400T 3.2.24.6.1, 15G, 11 ± 1 ms, 6 Directions |
|---|
| Humidity: | MIL-E-5400T 3.2.24.4, 100% RH |
|---|
| Altitude: | 0 ~ 30,000 ft |
|---|
