PLO-18G-INT-SFF-HERM
Active
Phase Locked Dielectric Resonator Oscillator (PLDRO)

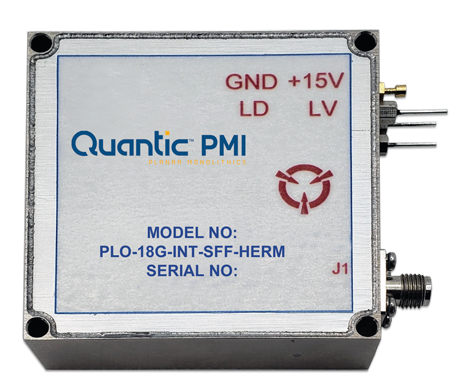

Quantic PMI Model PLO-18G-INT-SFF-HERM is a hermetically sealed Phase Locked Dielectric Resonator Oscillator (PLDRO) with Internal Reference covering the frequency of 18 GHz. Package size is 2.25” x 2.25” x 0.62” with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Output Frequency - fo (GHz): | 18 |
|---|
| Output Power (dBm): | 6 dBm Min |
|---|
| Spurious: | -60 dBc Max |
|---|
| Phase Noise: | Better than -105 dBc @ 10 kHz
Better than -110 dBc @ 100 kHz
Better than -125 dBc @ 1 MHz |
|---|
| Harmonics: | -25 dBc Max |
|---|
| VSWR: | 1.5:1 Max |
|---|
| Stability: | ± 1 ppm Max over operating temperature range |
|---|
| Reference: | Internally generated |
|---|
| Power Variation: | ±1.5 dB Max |
|---|
| Lock Indicator: | TTL Logic Telemetry Bit |
|---|
| Supply Voltage: | Any voltage between +10 to +15 VDC |
|---|
| Connectors: | SMA female |
|---|

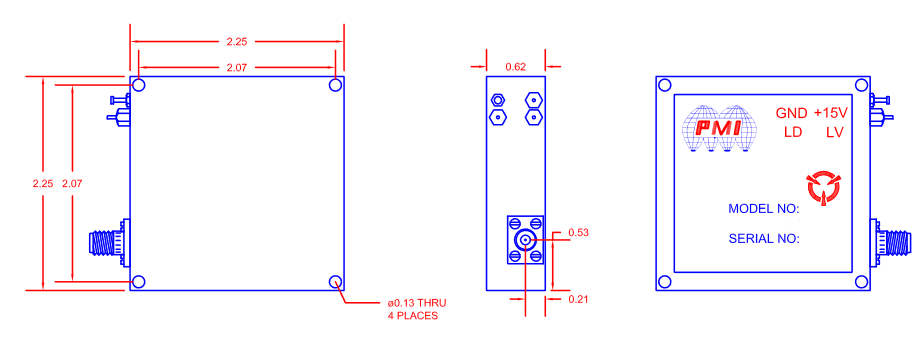

| Size: | 2.25" x 2.25" x 0.62" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | - 20 °C to + 60 °C |
|---|
