PLO-13D795G-10M-INT-SMA
Preliminary
Phase Locked Oscillator

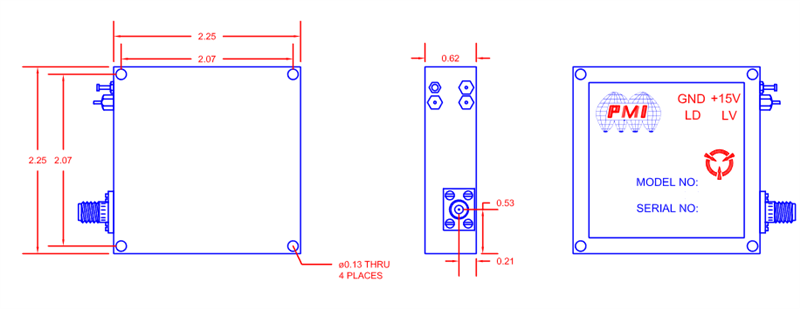

Quantic PMI Model PLO-13D795G-10M-INT-SMA is an internally referenced Phase Locked Oscillator (PLO) covering the frequency of 13.795 GHz. Package size is 2.25” x 2.25” x 0.62” with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 13.795 |
|---|
| Frequency Stability: | ±25 ppm |
|---|
| Load VSWR: | 1.5:1 Max |
|---|
| Output Power (dBm): | 10 dBm Min |
|---|
| Spurious: | -60 dBc Max @ 30 MHz |
|---|
| Phase Noise: | -80 dBc / Hz Max @ 1 kHz
-90 dBc/Hz Max @ 10 kHz
-95 dBc/Hz Max @ 100 kHz
-114 dBc/Hz Max @ 1 MHz |
|---|
| Harmonics: | -20 dBc Max |
|---|
| Frequency Accuracy: | ±100 kHz (±7.25 ppm) |
|---|
| Lock Detector: | TTL High - Lock |
|---|
| Input Level: | -3 to +3 dBm |
|---|
| Reference: | Internal |
|---|
| DC Current: | 350 mA Max |
|---|
| Reference Phase Noise: | -135 dBc/Hz Max @ 100 Hz
-155 dBc/Hz Max @ 1000 Hz
-160 dBc/Hz Max @ 10 kHz |
|---|
| Supply Voltage: | +12 to +15 VDC |
|---|
| Connectors: | RF: SMA Female
Power: THR Capacitor |
|---|
| Size: | 2.25” x 2.25” x 0.62” |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ℃ to +50 ℃ |
|---|
| Non-Operating Temperature: | -50 ℃ to +70 ℃ |
|---|
