PLNA-80M400M-26DB-4DB-15DBM-SFF-YK Active

Low Noise Amplifier

PLNA-80M400M-26DB-4DB-15DBM-SFF-YK
Product Feature

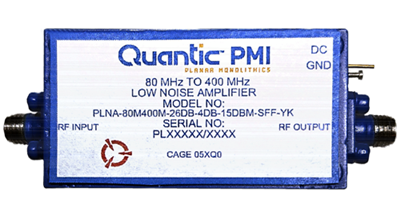

Quantic PMI Model PLNA-80M400M-26DB-4DB-15DBM-SFF-YK is a 0.08 to 0.4 GHz low noise amplifier with 24 to 28 dB of gain, a noise figure of 4.0, gain flatness of 2 dB p-p, and an OP1dB of 15 dBm. Package size is 1.92" x 1.06" x 0.69"; hermetically sealed and is supplied with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.08 to 0.4
Frequency Min (GHz): 0.08
Frequency Max (GHz): 0.4
Gain (dB): 24 dB Min
28 dB Max
Gain Flatness: 2 dB p-p
Over temperature at any one frequency point
Noise Figure (dB): 4 dB Max
OP1dB (dBm): 15 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +10 to +15.75 VDC
DC Current (mA): 200 mA Max
Input Power: 200 mW CW Max
500 mW Peak Max
(1 µs PW, 1 % Duty Cycle)
Sealing: Hermetic
Connectors: SMA Female
Size: 1.92" x 1.06" x 0.69"
Finish: Painted blue. Mounting surface free of paint.
Weight: 80 g Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -20 °C to +85 °C (Operating)
-20 °C to +85 °C (Storage)
Humidity: MIL-E-5400T 3.2.24.4
100% RH
Shock: MIL-E-5400T 3.2.24.6.1
147.105 m/s^2 (15G), 11 +/- 1 msec
(6 directions)
Vibration: MIL-E-5400T 3.2.24.5 Fig. 2 Curve Ill
Altitude: 0 to 4, 572 m (15, 000 ft.)
