PLNA-4G8G-42-4D5DB-10BBM-SFF Active

Low Noise Amplifier

Product Feature

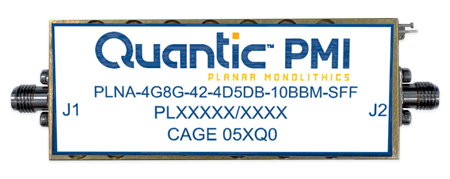

Quantic PMI Model PLNA-4G8G-42-4D5DB-10BBM-SFF is a Low Noise Amplifier that operates over the 4 to 8 GHz frequency range. Designed for military and industrial applications, this unit offers 39 to 45 dB of gain while maintaining a 2.5 dB flatness. Package size 2.75" x 1.15" x 0.66" with removeable SMA connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 4 to 8
Frequency Min (GHz): 4
Frequency Max (GHz): 8
Gain (dB): 39 dB Min,
45 dB Max
Gain Flatness: ± 2.5 dB Max
Noise Figure (dB): 4.5 dB Max
Psat (dBm): 8 dBm Min,
12 dBm Max
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 VDC
DC Current (mA): 420 mA Max
Connectors: SMA female - removable
Size: 2.75" x 1.15" x 0.66"
Finish: Gold Plated
Harmonics: -11 dBc Max (Goal -13 dBc) @ +5 dBm Input
Environmental Ratings:
Temperature (Operating): 0 °C to +70 °C
Temperature (Storage): -30 °C to +70 °C
Humidity: 95% RH at +45 °C
Shock: 20 g at 11 ms
Vibration: 5 mm peak to peak at 2 to 5 Hz
1.5 mm peak to peak at 5 to 10 Hz
3 mm peak to peak at 10 to 25 Hz
All 3 axes, 2 hours each
