PLNA-33-812-0R9-10DBM-SFF
Preliminary
Low Noise Amplifier
Quantic PMI Model PLNA-33-812-0R9-10DBM-SFF is a low noise amplifier operating within the 8 to 12 GHz frequency range that offers a minimum gain of 30 dB and a minimum OP1dB of 10 dBm. Package size is 0.64" x 0.7" x 0.29" with removable SMA female connectors that can be used as a connectorized or surface mount component.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 8 to 12 |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 12 |
|---|
| Gain (dB): | 30 dB Min
33 dB Typ |
|---|
| Gain Flatness (dB): | ±1.5 dB Max,
±1.2 dB Typ |
|---|
| Noise Figure (dB): | 0.9 dB Max
0.8 dB Typ |
|---|
| Input VSWR: | 2.0:1
1.5:1 Typ |
|---|
| Output VSWR: | 2.0:1
1.5:1 Typ |
|---|
| OP1dB (dBm): | 10 dBm Min,
13 dBm Typ |
|---|
| Impedance: | 50 Ohm |
|---|
| DC Supply: | +12 VDC Min
+15 VDC Typ
+18 VDC Max |
|---|
| DC Current: | 200 mA Max
85 mA Typ |
|---|
| Input Power: | 13 dBm Max |
|---|
| Connectors: | SMA Female - removable |
|---|

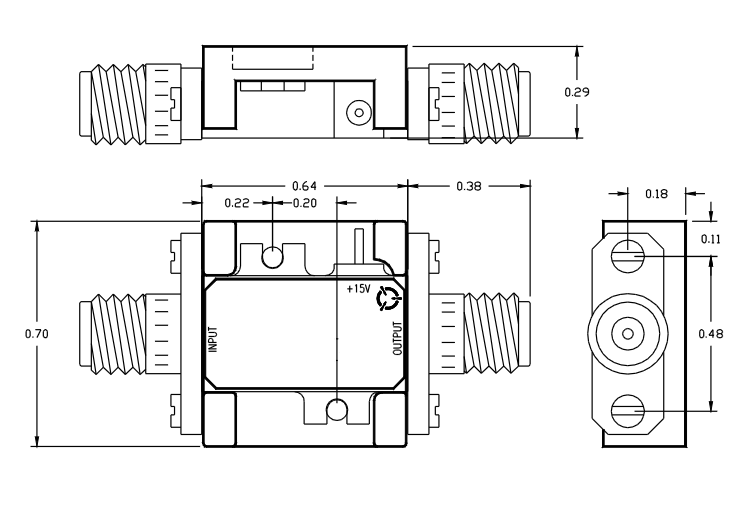

| Size: | 0.64" x 0.7" x 0.29" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to 85 °C |
|---|
| Temperature (Non-Operating): | -65 °C to +125 °C |
|---|
