PLNA-30M2G-35DB-5DB-10DBM-SFF-YK Preliminary

Low Noise Amplifier

Quantic PMI Model PLNA-30M2G-35DB-5DB-10DBM-SFF-YK is a Low Noise Amplifier that operates over the 0.03 to 2 GHz frequency range. Designed for military and industrial applications, this unit offers +30 to +40 dB of gain while maintaining a 1.5 dB flatness. Package size is 2.08" x 1.0" x 0.63" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.03 to 2
Frequency Min (GHz): 0.03
Frequency Max (GHz): 2
Gain (dB): 30 dB Min,
40 dB Max
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 5 dB Typ,
6 dB Max
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2:1 Max
DC Voltage (VDC): +12 to +15 VDC (± 5%)
DC Current (mA): 220 mA Typ,
250 mA Max
Input Power: 18 dBm Max
Connectors: SMA female - removable

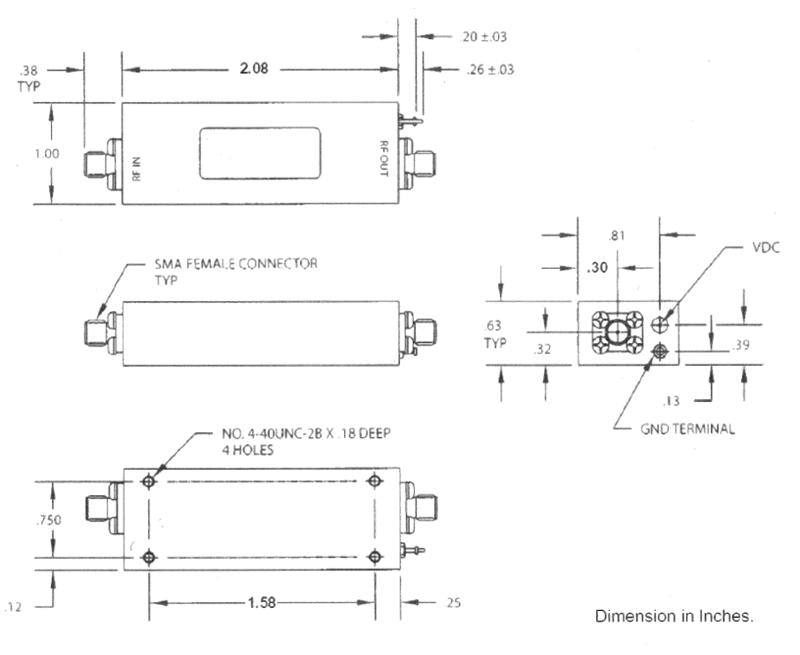

Size: 2.08" x 1.0" x 0.63"
Environmental Ratings:
Temperature (Operating): -10 °C to +85 °C
Temperature (Storage): -30 °C to +85 °C
Humidity: 95% RH at 45 °C
Shock: 5G 11 ms
Vibration: 10 mm p-p at 2 to 5 Hz
5 mm p-p at 5 to 10 Hz
5 mm p-p at 5 to 7 Hz
0.5 G at 7 to 50 Hz
