PLNA-30-9G11G-2-15-12-SFF-HERM Preliminary

Low Noise Amplifier

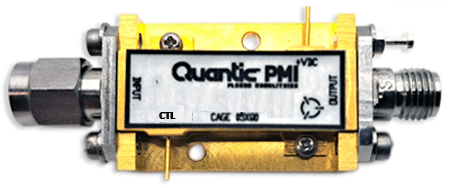

Quantic PMI Model No. PE2-30-9G11G-2-15-12-SFF-HERM is a 9 to 11 GHz Low Noise Amplifier designed for military and industrial applications.  This amplifier offers a maximum 2 dB Noise Figure with 30 dB of gain and +15 dBm output P1dB.  The amplifier requires +12 to +15 VDC and has a typical current draw of 240 mA. The unit is supplied with removable SMA connectors and can be used as a connectorized or surface mount component.

Similar performance to PE2-35-8G12G-2R5-15-12-SFF

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 9 to 11
Frequency Min (GHz): 9
Frequency Max (GHz): 11
Gain (dB): 30 dB Min
Gain Flatness: ±1 dB Max
Noise Figure (dB): 2 dB Max
OP1dB (dBm): 15 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 250 mA Max
Input Power: 20 dBm CW Max
Connectors: SMA
Switching Speed: 500 us
Sealing: Hermetic
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
