PLNA-30-10M20-SFF-DCSMA Active

Ultra-Low Noise Amplifier - Dual use Component

Product Feature

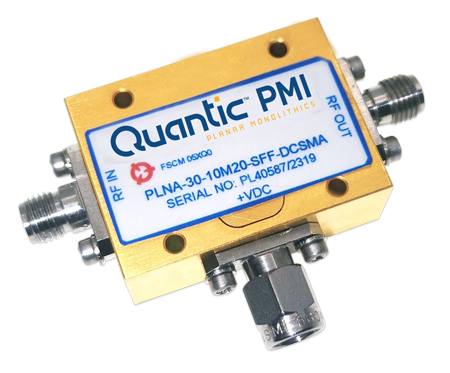

Quantic PMI model PLNA-30-10M20-SFF-DCSMA is an exceptionally low noise amplifier with a working frequency range of 0.01 to 20 GHz that offers a gain of 28 dB minimum at 20 GHz with a gain flatness of ±2 dB maximum up to 18 GHz and a noise figure of 3.5 to 4 dB maximum over the operating frequency range.   Physical size is 1.37" x 1.0" x 0.5" with SMA connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.01 to 20
Frequency Min (GHz): 0.01
Frequency Max (GHz): 20
Gain (dB): 26 dB Min (0.01 to 18 GHz),
28 dB Min (18 to 20 GHz)
Gain Flatness: ±2 dB Max (0.01 to 18 GHz)
Noise Figure (dB): 3.5 dB Max (0.01 to 0.5 GHz),
3.5 dB Max (0.5 to 18 GHz),
4 dB Max (18 to 20 GHz)
OP1dB (dBm): 14 dBm Min (0.01 to 18 GHz),
13 dBm Min (18 to 20 GHz)
Psat (dBm): 15 dBm Min (0.01 to 18 GHz),
14 dBm Min (18 to 20 GHz)
VSWR In/Out: 2.0:1 Max (0.01 to 18 GHz),
2.2:1 Max (18 to 20 GHz)
DC Voltage (VDC): +5 VDC
DC Current (mA): 150 mA Max
Input Power: 20 dBm Max
Reverse Isolation: 36 dB Min (0.01 to 18 GHz),
35 dB Min (18 to 20 GHz)
OIP3: +20 dBm Min (0.01 to 18 GHz)
+20 dBm Typ (18 to 20 GHz)
Connectors: SMA Female
Size: 1.37" x 1.00" x 0.50"
Finish: Gold Plated
DC Supply: +5 VDC @ 150 mA Max thru SMA male connector
Environmental Ratings:
Temperature: -40 °C to+ 85 °C (Operating)
-40 °C to +100 °C (Storage)
Humidity: MIL-STD-202F, METHOD 103B COND B
Shock: MIL-STD-202F, METHOD 213B COND B
Altitude: MIL-STD-202F, METHOD 105C COND B
Temperature Cycle: MIL-STD-202F, METHOD 107D COND A
