PLNA-2G4G-40-1DB-12DBM-SFF Preliminary

Low Noise Amplifier

Product Feature

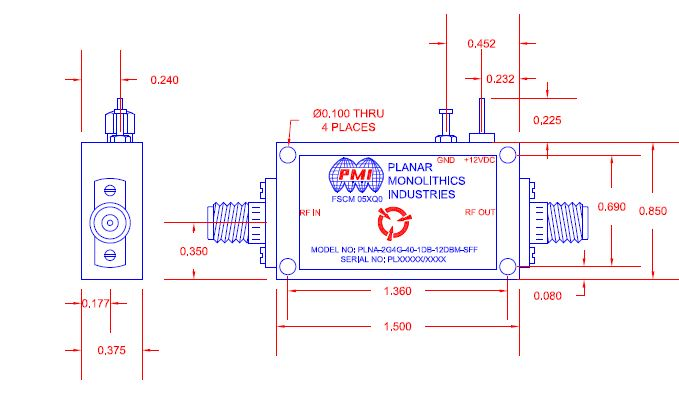

Quantic PMI Model PLNA-2G4G-40-1DB-12DBM-SFF is a low noise amplifier that operates over the frequency range of 2 to 4 GHz with a typical nominal small signal gain @ 25 °C of 40 dB and a typical gain flatness of ±1 dB. This model has a housing size of 1.5" x 0.85" x 0.375' with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 2 to 4
Frequency Min (GHz): 2
Frequency Max (GHz): 4
Gain (dB): 37 dB Min,
40 dB Typ,
43 dB Max
Gain Flatness: ±1 dB Typ
Noise Figure (dB): 0.8 dB Typ,
1 dB Max (@ 25 ºC)
OP1dB (dBm): 12 dBm Min,
14 dBm Typ
VSWR In/Out: 1.5:1 / 1.6:1 Typ
DC Voltage (VDC): +15 V Max
DC Current (mA): 150 mA Max
Input Power: 10 dBm CW Max
Reverse Isolation: 60 dB Typ
Connectors: SMA female - removable
Size: 1.5" x 0.85" x 0.375"
Finish: Nickel Plated
Environmental Ratings:
Temperature: -40 °C to +75 °C Operating
-55 °C to +125 °C Storage
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
