PLNA-25DB-8G18G-2PP-4DB-15DBM-SFF-YK Active

Low Noise Amplifier

PLNA-25DB-8G18G-2PP-4DB-15DBM-SFF-YK
Product Feature

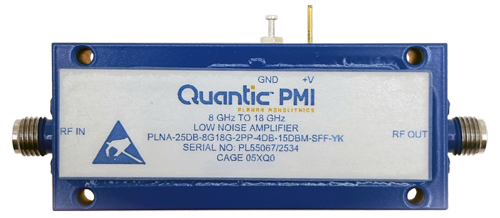

Quantic PMI Model PLNA-25DB-8G18G-2PP-4DB-15DBM-SFF-YK is a Low Noise Amplifier that operates over the 8 to 18 GHz frequency range. Designed for military and industrial applications, this unit offers 23 to 27 dB of gain while maintaining a 3 dB flatness over temperature. The unit is in a hermetically sealed package measuring 2.32" x 1.0" x 0.48" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8 to 18
Frequency Min (GHz): 8
Frequency Max (GHz): 18
Gain (dB): 23 dB Min,
27 dB Max
Gain Flatness: 3 dB P-P Max
Noise Figure (dB): 4 dB Max
OP1dB (dBm): 15 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +10 to +15.75 VDC
DC Current (mA): 330 mA Max
Input Power: 200 mW CW Max,
500 mW Max peak (pulse width 1 µs duty 1%)
Gain Variation Over Temperature: 3 dB p-p Max
OIP3: 23 dBm Min
Reverse Gain: -30 dB Max
Sealing: Hermetic
Recovery Time: 50 ns Max
Connectors: SMA Female - removable

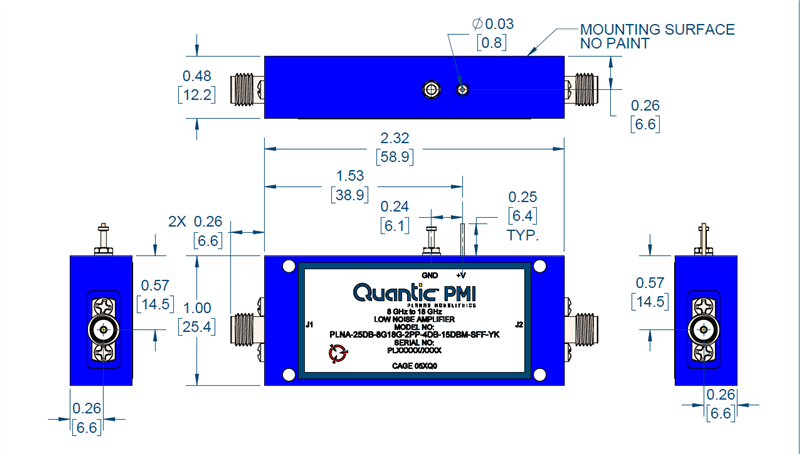

Size: 2.32" x 1.0" x 0.48"
Finish: Painted Blue
Mounting surface free of paint
Weight: 50 g Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -54 °C to +95 °C
Temperature (Non-Operating): -54 °C to +95 °C
Humidity: MIL-E-5400T 3.2.24.4
100% RH
Hermetic Seal
Shock: MIL-E-5400T 3.2.24.6.1
147.105 m/s^2 (15 G), 11+/- 1 ms (6 directions)
Vibration: MIL-E-5400T 3.2.24.5 Fig. 2 curve III
Altitude: 0 to 9, 144 m (30, 000 ft)
